Temperature and salinity layers

You may experience that temperature and/or salinity layers exist in the water column. Since the speed of sound in water depends on its temperature and salinity, such layers will cause the sound beam to be reflected.

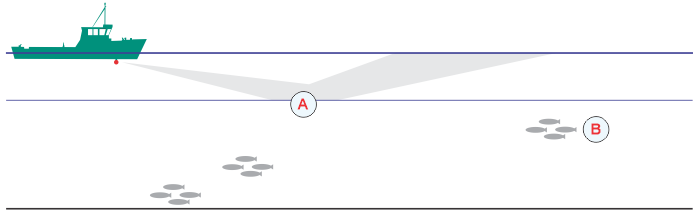

If you transmit a sonar beam down towards a temperature or salinity layer (A), it may be reflected as indicated in the illustration. The school of fish (B) you thought you would see will not be visible at all.
