Sonar beam deflections

On warm days – especially during summer – the sea surface will be heated by the sun. The water temperature will gradually decrease with increasing depth. On cold days, you may experience the opposite. The cold water will be close to the surface, and the water temperature increases with increasing depth.

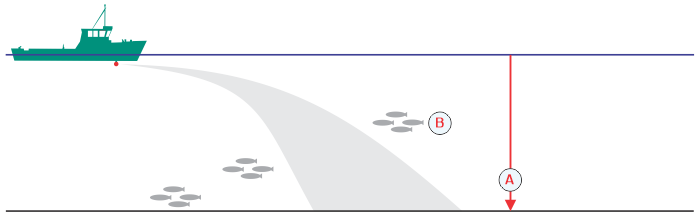

Water temperatures on a warm day

When the temperature decreases (A) closer to the bottom, the sonar beam is deflected down as indicated by the illustration. The school of fish (B) you thought you would see will not be visible at all.

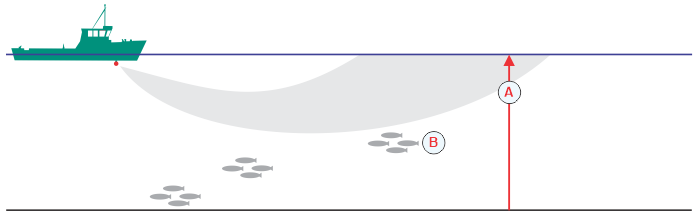

Water temperatures on a cold day

When the temperature decreases (A) closer to the surface, the sonar beam is deflected up as indicated by the illustration. The school of fish (B) you thought you would see will not be visible at all. Instead you will probably see a ring of surface echoes.
