Inspection views

The ST90 system offers three inspection beams. Each inspection beam is presented using an Inspection view. If you use several Inspection views, you can train and tilt the beams individually, and independent of the beams displayed in the other views.

You can use the Inspection view to study single fish, schools and bottom conditions in detail. The echo presentation in the Inspection view resembles the echogram you see on an echo sounder. The Inspection view can be regarded as an "echo sounder" with an adjustable direction.

You can train and tilt the beam independent of the beams displayed in the other views. To change the bearing of the Inspection view, use the Bearing function on the Main menu. You can also click on the solid bearing line in the Horizontal view and drag it.

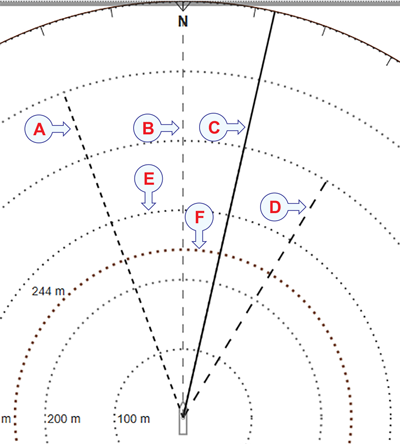

Certain presentation modes place the Inspection and Horizontal views together. When three Inspection views are open, the Horizontal view presents three different bearing lines. Two dotted bearing lines identify the bearing and the selected range of two inspection beams. The solid bearing line identifies the bearing of the last inspection beam. To change the bearing of an Inspection view:

Select the related bearing line and drag it sideways.
or:
Click in the view you want to activate. Select Bearing on the Main menu.

Inspection view: Bearing / Range
Bow marker
Inspection view / Bearing line
Inspection view: Bearing / Range
Range ring
Variable range ring
