Horizontal Axis page

The echo presentations in the Inspection views resemble the echograms you see on an echo sounder. The echoes travel from right towards left across the echogram presentation. Use the Horizontal Axis to choose the horizontal scale of the echogram. This controls the "speed" of the echoes.

How to open

This page is located in the Echogram dialog box. The Echogram dialog box is located on the Active menu. The dialog box is only available when an Inspection view is active.

Description

The horizontal scale controls how "fast" the echoes move from right towards left across the presentation. The changes you make are by default only valid for the active Inspection view. Click in the Inspection view to activate it. The active view is identified with a thicker border.

Details

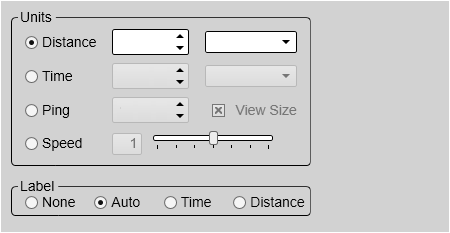

Horizontal Axis

The echoes travel from right towards left across the echogram presentation. Use the Horizontal Axis to choose the horizontal scale of the echogram. This controls the "speed" of the echoes.

Distance: The horizontal scale is based on sailed distance. Select resolution and unit.
Time: The horizontal scale is based on time. Select resolution and unit.
Ping: The horizontal scale is based on the number of transmissions (“pings�?) made. Select View Size to specify that the number of horizontal pixels shall define the number of displayed horizontal pings using one ping per pixel.
Speed: The horizontal scale is based on the relative speed you choose. Select speed with the ruler.

Label

Small labels are shown in the bottom left and right corners of the view. These labels can contain time or distance to identify the horizontal axis of the echogram. You can hide the labels from view.

None: The labels are hidden
Auto: The horizontal scale is set automatically
Time: The horizontal scale is defined by time. The time shown in the bottom right corner of the echogram is then the current time (now).
Distance: The horizontal scale is defined by distance. The distance shown in the bottom right corner of the echogram is then 0 nautical miles (starting point).
