Active menu: functions and dialog boxes

The Active menu offers parameters related to current views and data presentations provided by the ST90 system.

How to open

Select the Active icon.

The icon is located under the Main menu. Select the icon one more time to close the menu.

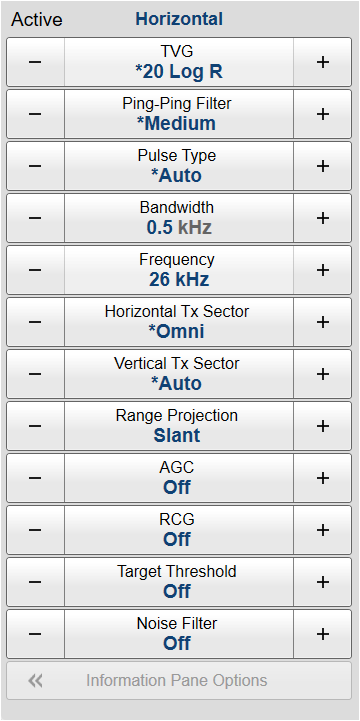

The choices in this menu depends on which view in the display presentation that is currently "active". The menu may therefore change from one view to another. The name of the currently active view is identified at the top of the menu. The screen capture may not show you all the menu choices.

Note:

Before you can change the settings related to a view, you must click inside the view to activate it. The changes you make are by default only valid for the active view.

Several of the functions offer Apply to All. If you select Apply to All your setting is applied to all the views in the current presentation mode.
