The Main menu is located at the top of the menu structure. It offers the most common functions for efficient use of the ST90 system. Unless you hide the entire menu system, the Main menu is visible at all times, even if you close the secondary menus.

About this manual
The purpose of this publication is to provide the descriptions, procedures and detailed parameter explanations required to allow for safe and efficient use of the ST90 system. The publication also provides you with a thorough understanding of the parameters and adjustments provided by the ST90 system.
Simrad ST90
Operating procedures
Maintenance procedures
User interface
Menu system
Functions and dialog boxes
- Main menu: functions and dialog boxes
  The Main menu is located at the top of the menu structure. It offers the most common functions for efficient use of the ST90 system. Unless you hide the entire menu system, the Main menu is visible at all times, even if you close the secondary menus.
  - User Settings dialog box
    The User Settings dialog box allows you to save the current user settings (your current selection of operational parameters), and to retrieve factory or previously saved user settings.
  - Range function
    The Range function allows you to specify the maximum distance from the transducer to the outer edge of the sonar beam. The range value shown and selected is by default only applied to the currently selected view.
  - Gain function
    The purpose of the Gain function is to adjust the echo level in the display presentations. By adjusting the gain you can control how much amplification the ST90 system applies to the received echoes. The setting is by default only applied to the active view.
  - Tilt function
    The Tilt function allows you to control the vertical angle of the sonar beams.
  - Bearing function
    The Horizontal view presents the 360 degrees area around your vessel from a bird’s eye view. For the other views you must define the horizontal direction of the beam. Use Bearing to adjust the horizontal angle referenced to the vessel heading. You can also select the bearing line and drag it sideways.
- Operation menu: functions and dialog boxes
  The Operation menu allows you to control the operating mode, the recording functionality, and how the ST90 system transmits audio pulses ("ping") into the water.
- Display menu: functions and dialog boxes
  The Display menu provides basic functions related to the screen behaviour and presentation of the echo data. Use the Display menu to control the visual aspects of the system, and to show or hide various elements in the presentation.
- Setup menu: functions and dialog boxes
  The Setup menu provides basic functions related to the installation parameters and the communication with peripheral systems.
- Active menu: functions and dialog boxes
  The Active menu offers parameters related to current views and data presentations provided by the ST90 system.
- Secondary functions and dialog boxes
- Pages in the Output dialog box
  A key function of the ST90 system is its ability to export data. The purpose of the Output dialog box is to collect all functionality related to data output in one easily accessible location.
- Pages in the Display Options dialog box
  The Display Options dialog box is used to specify basic settings for the sonar presentation.
- Pages in the Environment dialog box
  Environmental parameters such as salinity, sound speed and water temperature all play an important part to present accurate echo data. Use the Environment parameters to define these values. Depending on the current sea and weather conditions, you may need to change these values frequently.
- Pages in the Diagnostics dialog box
  The ST90 system is a computerized sonar. There are hardly any analogue circuitry, and the possibility of traditional troubleshooting is limited. In order to rectify this, a built-in software application is available to offer test and maintenance functionality. The Diagnostics dialog box controls the test and diagnose application that checks the performance of the ST90 system.
- Pages in the Installation dialog box
  Before you use the ST90 system you must set it up to communicate with the relevant peripherals. Use the Installation dialog box to set up all interfaces with external devices, and to set up basic parameters related to installation and operation. In most cases, you only need to do this once.
- Pages in the Echogram dialog box
  The Echogram dialog box allows you to control the echogram presentation in the Inspection views. Two pages control the horizontal lines and the echogram type with applied TVG (time variable gain). One page controls how fast the echogram travels horizontally across the presentation.
- Pages in the Information Pane Options dialog box
  The ST90 system offers several information panes to provide additional and detailed data from the presentations. The information panes are opened and closed from the top bar. Several of the information panes are fitted with a Setup button. Select Setup to open the Information Pane Options dialog box. Use the Information Pane Options dialog box to change the operating parameters for the data provided in the information panes.
Concept descriptions
Technical specifications
The technical specifications summarize the main functional and operational characteristics of the ST90 system. They also provide information related to power requirements, physical properties and environmental conditions.
Datagram formats
The ST90 system can send and receive information to and from several different peripherals. All transmissions take place as datagrams with data sentences. Each datagram has a defined format and length.
***

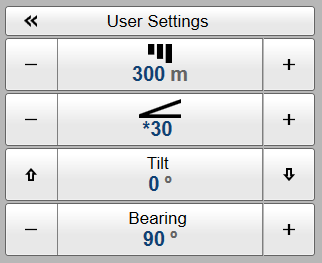

Main menu: functions and dialog boxes

The Main menu is located at the top of the menu structure. It offers the most common functions for efficient use of the ST90 system. Unless you hide the entire menu system, the Main menu is visible at all times, even if you close the secondary menus.

How to open

By default, the Main menu is open. It is placed on the right side of the display presentation.

Tip:

If you do not need to use the menu system, you can hide it. This allows more space for the echo presentation.

Use the Menu on the top bar to hide or show the menu. When the menu system is hidden, it appears temporarily on the left or right-hand side of the screen if you move the cursor to that position.
