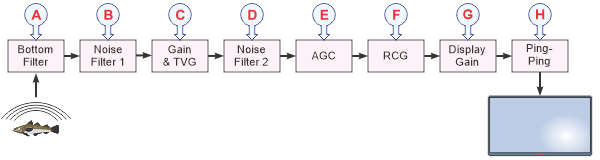

About the receiver filter sequence in the ST90 system

The filters in the ST90 system are implemented in “series�?. Any changes to a filter setting may therefore have an effect on subsequent filters.

Bottom Filter
Noise Filter (1)
Gain & TVG (Time Variable Gain)
Noise Filter (2)
AGC (Automatic Gain Control)
RCG (Reverberation Controlled Gain)
Display Gain
Ping‑Ping Filter

Note that Gain, TVG (Time Varied Gain) and Display Gain are not filters, but included only to illustrate the complete "signal path".
