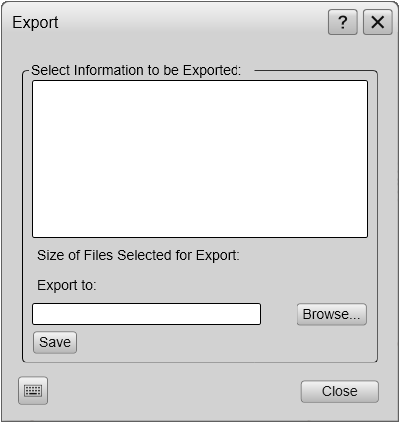

Export dialog box

The Export dialog box allows you to export user settings, configuration files, message logs and information mainly related to hardware and software troubleshooting.

How to open

This dialog box is opened from the Setup menu.

Description

Exporting technical information from the ST90 system to a hard disk or USB flash drive is often useful. Both during normal use, and perhaps preferably during software and hardware troubleshooting, it can be helpful to share information. The Export dialog box provides you with a list of file types to export. You must specify where these files shall be saved.

Details

Select information to be exported

Select the information you wish to export. The total size of the selected files is shown below the list.

Export to

Select Browse to locate the desired folder.

You can also type the folder name. If you do not have a computer keyboard connected to your ST90 system, select the Keyboard button to open an on-screen keyboard.

Save

Select Save to start the data export.
