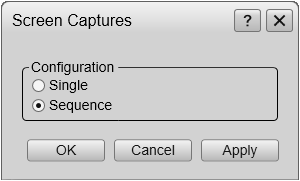

Screen Captures dialog box

While using the ST90 system you may wish to make a screen capture to save an instantaneous copy of the current presentation. You can choose either a single screen capture or a sequence with multiple screen captures.

How to open

This dialog box is opened from the Setup menu.

Description

Each screen capture you make is saved in .jpg format on the Processor Unit hard disk. The file name reflects the current date and time.

Use Screen Capture File Location to define where to save your screen captures. This page is located in the Output dialog box. To open, select it on the Operation menu.

Default folder:

C:\Users\Public\Documents\Simrad\ST90\ScreenDumps

Details

Single: In Single mode one screen capture is taken every time you select Screen Capture on the top bar.
Sequence: In Sequence mode a new screen capture is created for every ping. Select Screen Capture on the top bar to start the sequence. Select Screen Capture one more time to stop the sequence.

Related functionality

Operating Panel (Mk1): Press Record to make a screen capture.
Operating Panel (Mk2): Press Screen Capture to make a copy of the current display presentation.
Operating Panel (Mk3): Press Screen Capture to make a copy of the current display presentation.
Top bar: Select Screen Capture to make a copy of the entire display presentation.
Screen Captures File Location page: Use Screen Capture File Location to define where to save your screen captures. This page is located in the Output dialog box. To open, select it on the Operation menu.
