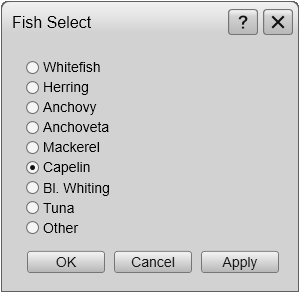

Fish Select dialog box

The Size Distribution information pane presents a histogram with the echoes from single fish. The calculations are based on the fact that different fish species have different echo strength. The echo strength also depends on the operating frequency you use. For various reasons, the fish sizes presented in the Size Distribution information pane may be inaccurate. The Fish Select dialog box allows you to select the fish species you expect to catch. You can then manually adjust the size distribution.

How to open

You open this dialog box from the Setup menu.

Description

If the information in the Size Distribution information pane appears to be inaccurate, or the information does not correspond with the actual catch, the values can be modified.

Select the specie you are catching or looking for.

Tip:

Once you are able to assess your catch, you can use the Fish Size Adjustment page to change the average size of the various species. The page is opened in the Information Pane Options dialog box. The Information Pane Options dialog box is only available when an Inspection view is active.
