School Mass Adjustment page

When you have defined a priority target, the information in the Horizontal view includes an estimate of its area and volume. Once you are able to assess your catch, you can use the School Mass Adjustment page to change the weight/volume proportions. This will increase the accuracy of the information in the view.

How to open

The page is opened in the Information Pane Options dialog box. To open, select the button on the Active menu.

You can also open the page by selecting Setup in the information pane.

Prerequisites

The Information Pane Options dialog box is only available when an Inspection view is active.

Description

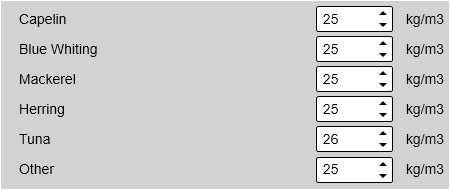

For the selected specie, adjust the density.
