Add Fishing Gear dialog box

By defining the type of fishing gear you are using, the ST90 system may provide more accurate visual presentations. Use the Fishing Gear Setup dialog box to change the fishing gear properties to match your own equipment. Use the Add Fishing Gear to add new equipment to your fishing gear list.

How to open

Open this dialog box from the Fishing Gear Setup dialog box.

Under Fishing Gear, select Fishing Gear Setup to open the dialog box. This dialog box is also provided as a page in the Installation dialog box.

Description

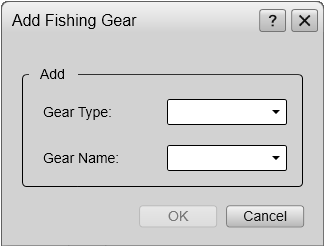

In the Add Fishing Gear dialog box, select gear type and gear name.

Related functionality

Fishing Gear function

The Fishing Gear function allows you to define the size of your trawl or purse seine. Accurate fishing gear properties are important for the following functionality:

Circle Marker
Gear Symbol
Catch view
Vertical view

Open this function from the Setup menu.

Fishing Gear Setup dialog box

Use the Fishing Gear Setup dialog box to change the fishing gear properties to match your own equipment. Under Fishing Gear, select Fishing Gear Setup to open the dialog box. This dialog box is also provided as a page in the Installation dialog box.
