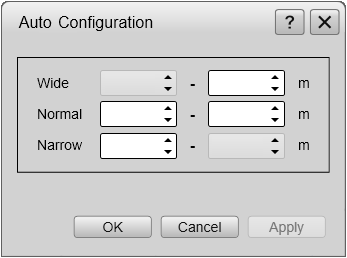

Auto Configuration dialog box

The Vertical Tx Sector function is used to change the vertical opening angle in horizontal and vertical swaths. If you select Auto, the sector is defined by the current range. Use the Auto Configuration dialog box to define for which ranges the Vertical TX sector is set to Narrow, Normal or Wide.

How to open

Select the middle of the Vertical Tx Sector button. You open this function from the Active menu. Select Auto Configuration.

Description

Select which range you want to apply to each sector setting.
