Current Flow page

A current sensor can be connected to the ST90 system. This can for example be an acoustic Doppler current profiler (ADCP). The information from this sensor is presented in the applicable views. Use the Current Flow page to define key settings for the presentation of the sensor data.

How to open

This page is located in the Display Options dialog box. The Display Options dialog box is located on the Display menu.

Description

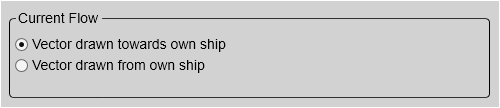

The data from the current sensor are presented in the relevant views using text and arrows. Multiple arrows are used if the sensor presents information from more than one layer. The Current Flow page allows you how to present the direction of the sea current.

To
From: Use this setting to present the direction from which the ocean current is coming. Observe the inverted arrows.

Tip:

The Current Vector function shows you the speed and direction of the water current under your vessel. One or more arrow are drawn to or from the vessel symbol to indicate the properties of the sea currents. The direction of the arrows indicate the direction of the water currents. The length of the arrows reflects their speeds. The Current Vector function is located on the Visual Objects menu.

A numerical readout of the current vector data is provided in the top right corner of the Horizontal view.
