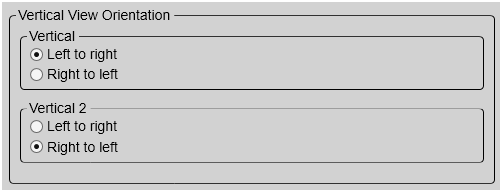

Vertical View Orientation page

The Vertical View Orientation page allows you to decide whether the vertical views should be presented from right to left, or from left to right.

How to open

This page is located in the Display Options dialog box. The Display Options dialog box is located on the Display menu.

Description

Each Vertical view shows you a "vertical slice" of the echo data. The upper horizontal line in the view represents the water surface. The current tilt is shown with a solid line. The Cosmetics menu controls which "cosmetic" features that used.

By default, the vertical views have the transducer located in the upper left corner of the view. The presentation is made from left towards right. If you wish to change the direction of the presentation, make the appropriate choice on this page.

Certain presentation modes provide more than one vertical view. You can then set up these views individually.
