Presentation Modes page

All echoes offered by the ST90 system are shown in rectangular views. Combinations of these views are organized in presentation modes. Each presentation mode offered by the ST90 system provides a selection of views in a predefined pattern. To open a presentation mode use the relevant tab on the bottom bar. Use the functionality offered by the Presentation Mode page to choose which presentation modes to choose from.

How to open

This page is located in the Display Options dialog box. The Display Options dialog box is located on the Display menu.

Description

The various views provide the graphical presentation of the sonar data. To provide the best possible visualization of the sonar data, several presentation modes are available. Together, these modes offer a flexible choice of views for a large range of user applications.

The phrase presentation mode is used to describe the combination of views that are shown when the mode is selected at the bottom of the display presentation.

The tabs on the bottom bar allow you to choose presentation mode. If you have many presentation modes on a small display, two small arrows appear on the left side of the bottom bar. You can use these arrows to scroll the bottom bar sideways.

Use the functionality offered by the Presentation Mode page to choose which presentation modes to choose from. This can be useful for several reasons:

A small display monitor may not be able to show you all the presentation mode tabs.
You don't need to scroll.
You can hide the presentation modes that you hardly or never use.

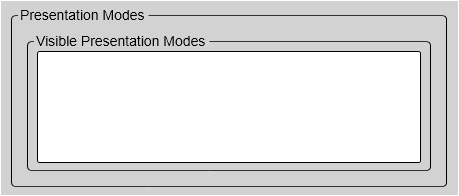

All the presentation modes are listed. Each of these appears as a tab on the bottom bar. Select which presentation modes to choose from.
