Echogram Settings page

The ST90 system offers several inspection beams. Each inspection beam is presented using an Inspection view. Use the Echogram Settings page to set up basic functionality for the Inspection views.

How to open

This page is located in the Installation dialog box. To open the page, select Installation on the Setup menu.

Prerequisites

The Installation dialog box is not available when your ST90 system is set to Replay mode.

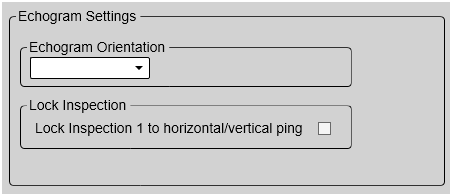

Example

Description

The echo presentation in the Inspection view resembles the echogram you see on an echo sounder. The Inspection view can be regarded as an "echo sounder" with an adjustable direction. In the ST90 system we use the phrase echogram to describe the information provided by the view.

Details

Echogram Orientation: The inspection beams offered by the ST90 system resembles individual split beam echo sounders that you can point in the desired directions. The Echogram Orientation function allows you to see the echo data with the start depth and the transmit pulse at the transducer face (looking "downwards"), or vice versa (looking "upwards").
Lock Inspection: The bearing of the Inspection 1 view can be locked to the bearing the Horizontal view.
