Units page

The user interface presents many measurements. These measurements are for example related to depth, range and distance. From the Units page you control which units of measurements are used.

Prerequisites

The Installation dialog box is not available when your ST90 system is set to Replay mode.

How to open

This page is located in the Installation dialog box. To open the page, select Installation on the Setup menu.

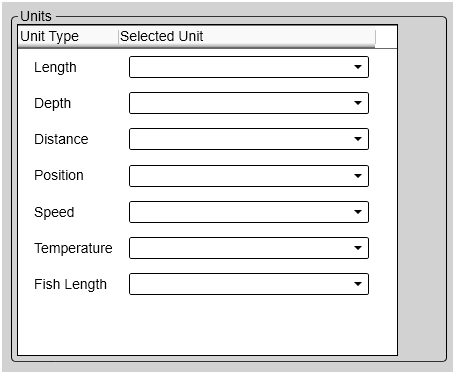

Description

The ST90 system is prepared to work with several international standards for units of measurements.

Use the Units options to select the units of measurements you want to work with. The ST90 system uses them in all presentations. You only need to define them once. Use the drop-down lists provided to make the selections.

Note:

When you work in the Installation dialog box, you must always select Apply to save the changes made on a page. You must do this before you continue working on a different page.

Details

Length: Choose the unit of measurement for all the readouts related to range and distances in the ST90 system user interface. This may for example be the cursor location.
Depth: Choose the unit of measurement for all the presentations of depth. This may for example be the current water depth.
Distance: Choose the unit of measurement for all presentations of sailed distance.
Position: Choose the unit of measurement for geographical positions.
Speed: Choose the unit of measurement for all the presentations of vessel speed.
Temperature: Choose the unit of measurement for all the temperature readings. This may for example be the current water temperature, but only if you have a suitable sensor connected to the ST90 system.
Fish Length: Choose the unit of measurement for all presentations of fish length.
