Vertical TX Sector function

The Vertical Tx Sector function is used to change the vertical opening angle in horizontal and vertical swaths.

Specifications


	Maximum	Other options
Horizontal swath	Wide	Narrow, Normal, Auto
Vertical swath	90 degrees	30, 60 degrees
Plane swath	Wide	Narrow, Normal, Auto
Inspection beams	-	-

How to open

You open this function from the Active menu.

Description

Note:

The options provided by this function depend on your current active view.

Use the Vertical Tx Sector function to control the opening angle - and thus the size - of the vertical search sector (swath). This is the physical area that is covered with each transmission ("ping"). If you select Auto, the sector is defined by the current range.

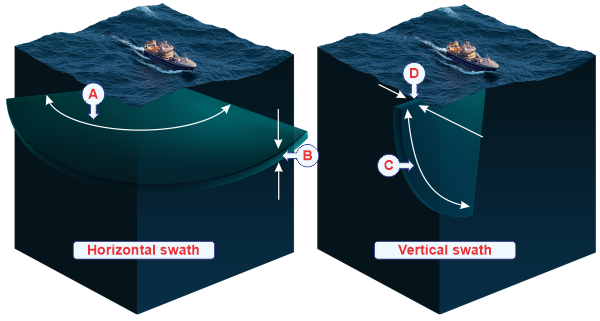

This is the horizontal TX sector in a horizontal swath.
This is the vertical TX sector in a horizontal swath.
This is the vertical TX sector in a vertical swath.
This is the horizontal TX sector in a vertical swath.

If the Vertical TX Sector value in a vertical swath is smaller than its maximum value, the centre of the sector is defined by the Tilt function.

Related functionality

Auto Configuration dialog box: Use the Auto Configuration dialog box to define for which ranges the Vertical TX sector is set to Narrow, Normal or Wide. Select the middle of the Vertical Tx Sector button. Select Auto Configuration.
