Docking Views function

Each presentation mode offered by the ST90 system provides a selection of views in a predefined pattern. These are placed at different positions with different sizes. With the Docking Views function you can move and re-size the views in the display presentation.

How to open

Open this function from the Display menu.

Description

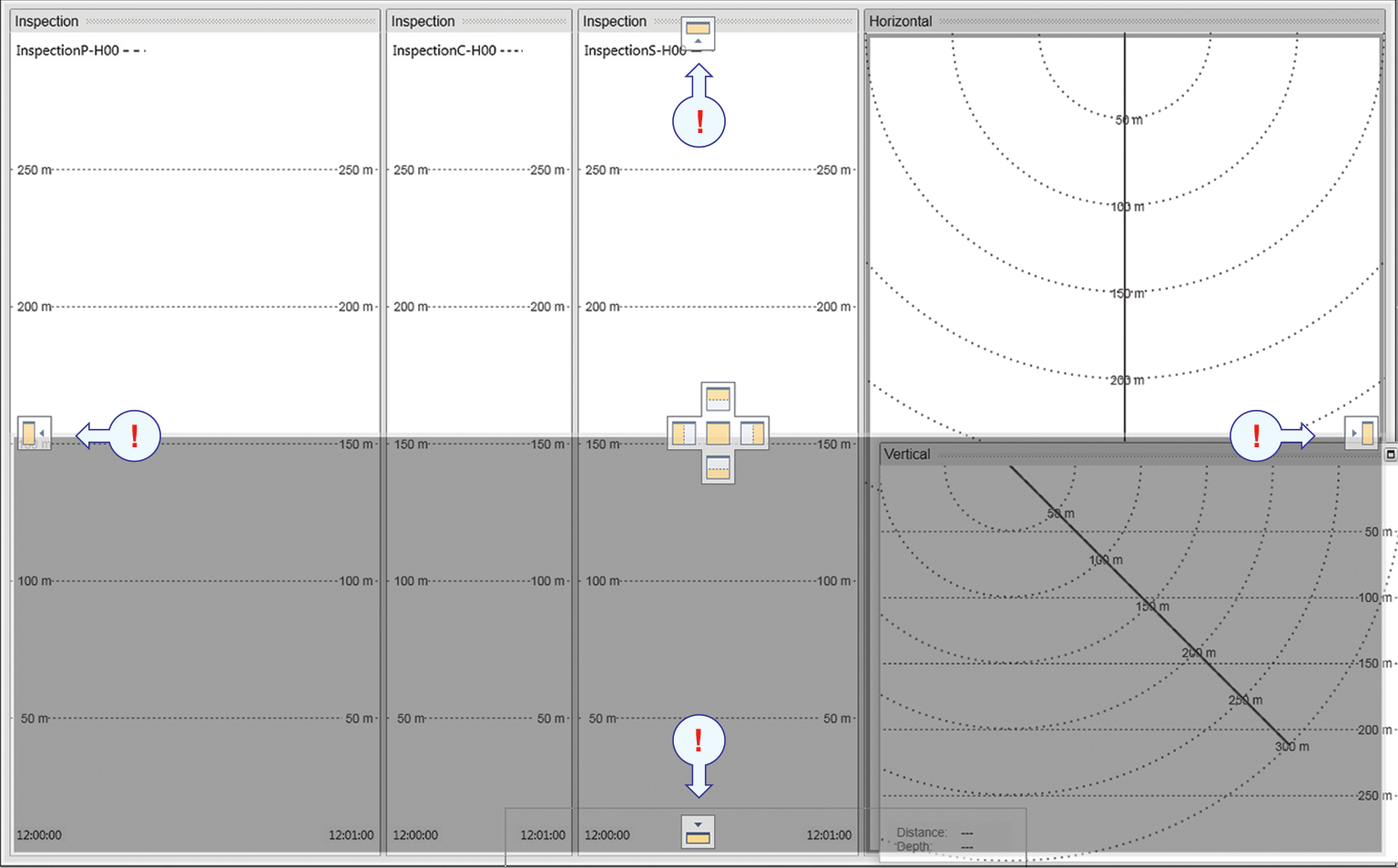

Once the Docking Views function is activated, the various views are placed in named windows, and docking positions for these windows are shown. The docking positions show you where to drag and drop the selected view. Any view can be selected, and then repositioned as indicated by the docking positions.

Note:

When a complete reorganisation of the view positions and sizes have been completed, you may wish to restore the presentation to what it was before you changed it. You must use the User Settings dialog box to do this. We suggest that you save your current user settings before you activate the Docking Views function. Unless you do this, you will need to apply the factory defaults to reset the presentation.
