Horizontal TX Sector / Vertical TX Sector

The Horizontal Tx Sector function allows you to control whether the system shall transmit acoustic energy into the water in omni (360°) or within a defined sector. The Vertical Tx Sector function is used to change the vertical opening angle in horizontal and vertical swaths.

If the Horizontal TX Sector value in a horizontal swath is smaller than its maximum value, the centre of the sector is defined by the Bearing function. In the Horizontal view the transmit sector is shown as a triangle originating from the vessel symbol.

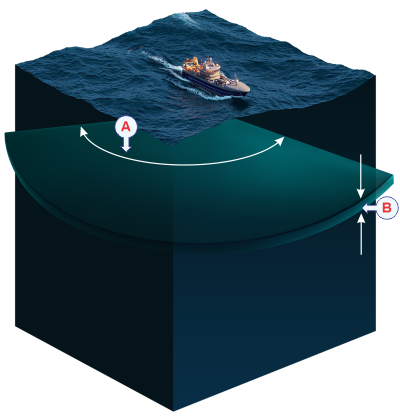

Horizontal swath:

This is the horizontal TX sector in a horizontal swath.
This is the vertical TX sector in a horizontal swath.
