Ship page

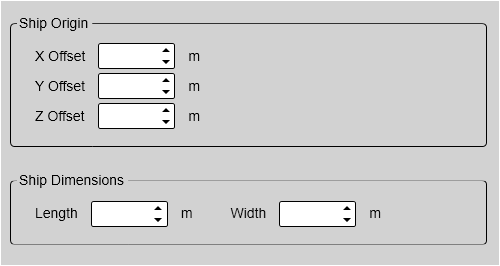

Use the Ship page to define a specific reference point (Ship Origin or origo) for the various sensors connected to the ST90 system. The origin is the common reference point where all three axis in the vessel coordinate system meet. All physical locations of the vessel’s sensors (radar and positioning system antennas, echo sounder and sonar transducers, motion reference units, etc.) are referenced to the origin.

Description

Use the Ship page with the ship's physical dimensions to create a virtual reference point (the Ship Origin) in a dedicated coordinate system for the ST90 system. The Ship Origin is normally located in the following position:

X position: Half the ship's length
Y position: Half the ship's width
Z position: On the waterline

If you want to change the location of the Ship Origin, you can do this by providing offset values in the X, Y and/or Z directions. To do this you will need the ship drawings.

Note:

We recommend that you place the Ship Origin at the same position as the motion reference unit (MRU). This will minimize the vectors when your vessel is moving. Use the vessel drawings to establish the offset values between the basic position of the Ship Origin and the MRU location.

Details

X Offset

Select the offset value on the X axis (fore-and-aft direction) from the default Ship Origin. This is the origin that was defined by the vessel designer and/or the shipyard when the vessel was built. Adjust with a positive value for X if your new preferred origin is located ahead of the default Ship Origin.

Y Offset

Select the offset value on the Y axis (athwartship) from the default Ship Origin. This is the origin that was defined by the vessel designer and/or the shipyard when the vessel was built. Adjust with a positive value for Y if your new preferred origin is located on the starboard side of the default Ship Origin.

Z Offset

Select the offset value on the Z axis (vertical) from the default Ship Origin. This is the origin that was defined by the vessel designer and/or the shipyard when the vessel was built. Adjust with a positive value for Z if the new preferred origin is located under the default Ship Origin.

Ship Dimensions

Insert the physical dimensions of your vessel (length and width).

Do this as accurately as possible. This information is used to create a new origin in the vessel coordinate system.
