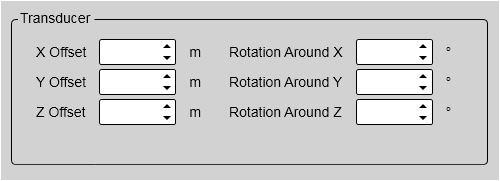

Transducer page

Use the Transducer page to define the physical location of the transducer in the vessel coordinate system, as well as the installation angles (rotation). The installation angles define in which direction the transducer face points.

Description

The physical location of the transducer is important for the echo data accuracy.

Use the centre of the transducer face as reference, and define the offset values related to the Ship Origin. The installation angles relevant for the transducer must also be defined. These values were recorded during the installation, and they define the direction of the transducer face.

Note:

It is very important that the transducer installation angles are measured and recorded accurately during the installation. Incorrect angles will greatly reduce the data accuracy.

Details

X Offset: Select the offset value on the X axis (fore-and-aft direction) from the Ship Origin. Adjust with a positive value for X if the transducer is located ahead of the ship origin.
Y Offset: Select the offset value on the Y axis (athwartship) from the Ship Origin. Adjust with a positive value for Y if the transducer is located on the starboard side of the ship origin.
Z Offset: Select the offset value on the Z axis (vertical) from the Ship Origin. Adjust with a positive value for Z if the transducer is located under the ship origin.
Rotation Around X: Specify an angle (in degrees) to compensate for any deviation from the X axis (fore-and-aft direction) in the vessel coordinate system.
Rotation Around Y: Specify an angle (in degrees) to compensate for any deviation from the Y axis (athwartship direction) in the vessel coordinate system.
Rotation Around Z: Specify an angle (in degrees) to compensate for any deviation from the Z axis (vertical direction) in the vessel coordinate system.
